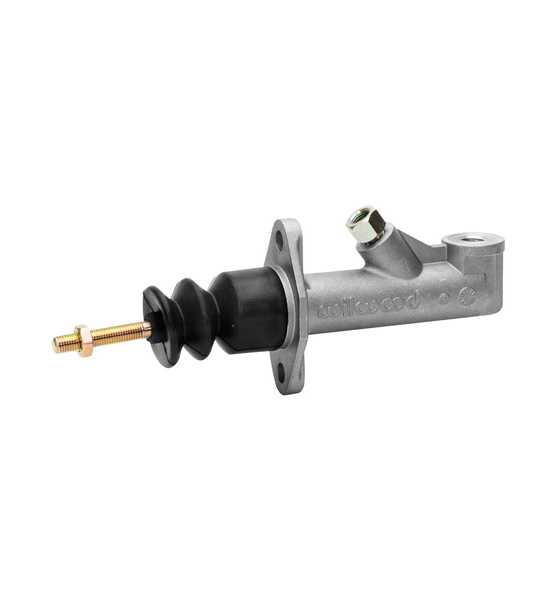

Brake/Clutch  Master Cylinder , 0.625" (16 mm) Heavy Duty

This Girling/Castrol style universal type brake fluid reservoir we offer in our store can be used in conjunction with these brake or clutch master cylinders.

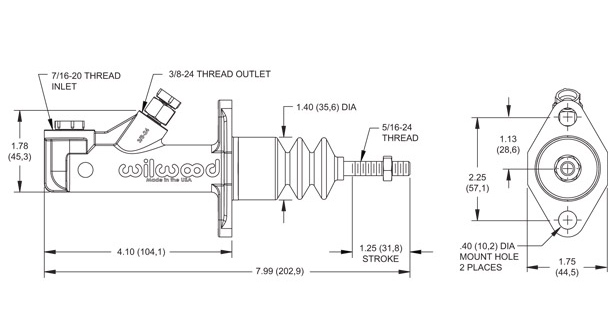

DESIGN

• Bore Size is 5/8" (16 mm)
• Pushrod Thread is 5/16" standard thread (we sell the rod ends and brake pipe fittings for this also – see the Level  2 option in this category)
• Outlet is 3/8-24  UNF
• Inlet is 7/16" UNF thread -suitable for the Master Brake/Clutch fluid reservoir we offer in our store here also (see the LEVEL 3 option in our store)
• 2 1/4" (57mm) between the mounting points.
• Approximate stroke length: 40mm
• Suitable for Hydraulic Handbrakes and Pedal Boxes -standard fitment size.

EXCLUSIVE FEATURES

• 1 year guarantee
• Free UK 1st class postage

WARNING

IT IS THE RESPONSIBILITY OF THE PERSON INSTALLING AND BRAKE COMPONENT OR KIT TO DETERMINE THE SUITABILITY OF THAT COMPONENT OR KIT FOR THAT PARTICULAR APPLICATION. IF YOU ARE NOT SURE HOW TO SAFELY USE THIS BRAKE COMPONENT OR KIT, YOU SHOULD NOT INSTALL OR USE IT. DO NOT ASSUME ANYTHING. IMPROPERLY INSTALLED OR MAINTAINED BRAKES ARE DANGEROUS. IF YOU ARE UNSURE, SEEK EXPERT PROFESSIONAL QUALIFIED HELP OR RETURN THIS ITEM TO US. YOU, OR THE PERSON WHO INSTALLS THIS PRODUCT, MUST KNOW HOW TO INSTALL OR PROPERLY USE THIS PRODUCT. IT IS NOT POSSIBLE TO OFFER TECHNICAL ASSISTANCE OVER THE PHONE TO UNDERSTAND OR FORESEE ALL THE ISSUES THAT MIGHT ARISE IN YOUR SPECIFIC INSTALLATION. RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR DAMAGE, WEAR OR FATIGUE.

Wilwood Fluid Reservoir - Ideal for Motorsport and Road Going Applications.

To complement these reservoirs, we have a range of other products available in our online store.
