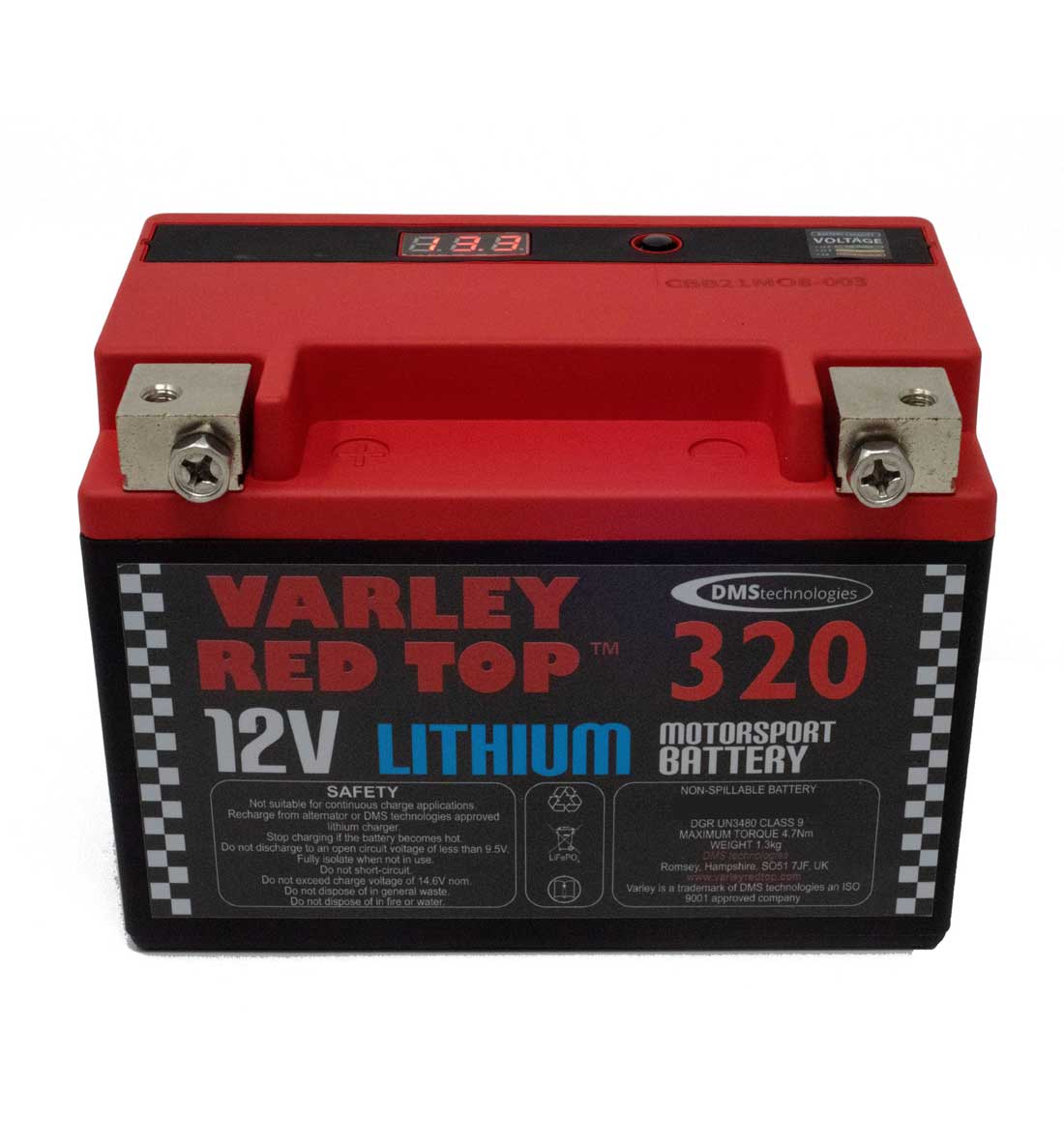

McGill Motorsport now offer as part of their Batteries range the Varley Red Top Lithium 320 12V 5AH Battery. This latest Lithium Ferrous Phosphate motorsport battery is now available. The Varley Lithium 320 is a 12.8V 5Ah battery and weighs only 1.3kg. This battery is an engine start battery capable of the exceptional engine cranking ability expected from the Varley brand. The battery utilises LiFePO4 (lithium iron phosphate) technology, which is widely regarded to be one of the safest and longest lasting forms of lithium-ion battery available. The
combination of innovative design and cutting-edge engineering techniques enable the battery to deliver such impressive performance safely, reliably and in an extremely lightweight package.
Specifications 320 : 7162-0067
Battery Chemistry LiFePO4
Nominal Voltage 12.8V
Capacity 5Ah
Continuous Discharge Current* 80A
Dimensions (WxDxH) 87 x 150 x 105mm
Weight 1.3kg
Terminals M6 Female
Operating Temperature -20ºC to +60ºC
Storage Temperature -20ºC to +60ºC
* Values provided above are based on tests conducted at +23°C
Parameter | Min. Typ. Max.
Voltage* 10.0V 12.8V 14.6V
Continuous Discharge Current* - - 80A
Peak Discharge Current ** - - 320A
Capacity* - 5Ah (64Wh) -
Charge Voltage* - 14.4V 14.6V
Approved Lithium Charger Current - 7.5A 20A
Low Voltage Cut Off 9.5V
Over voltage protection 15.6V
Operating Temperature (Discharge) -20°C - +60°C
Operating Temperature (Recharge) 0°C - +60°C
Storage Temperature -20°C - +60°C
Weight 1.3kg
Dimension (W x D x H) 87mm x 150mm x 105mm
Terminal Thread M6 (Female)
