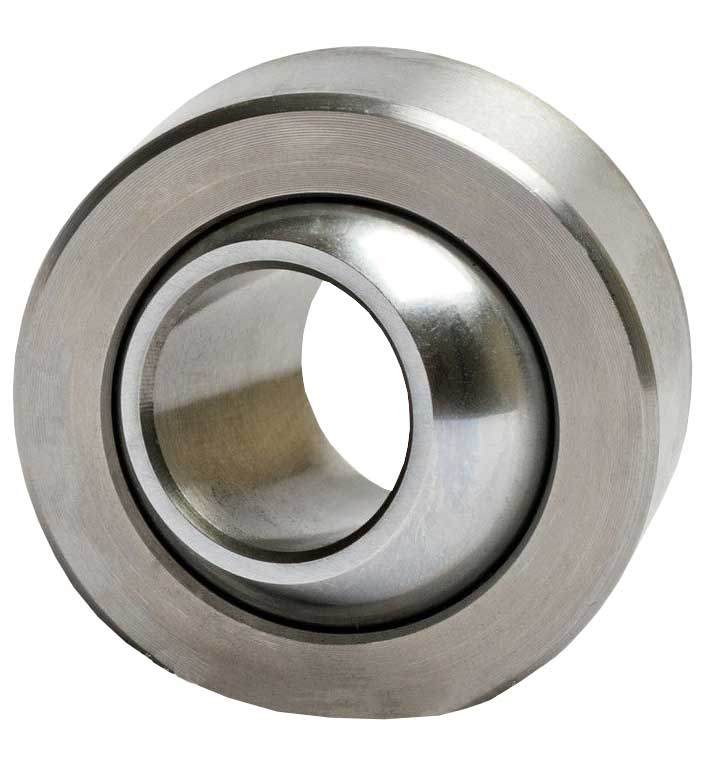

McGill GEK-C Teflon Lined Series Bearings have 3 components; the ball, the liner and the outer race. The ball is inserted into the body and the body is then swaged around the ball to lock it in and it is then loosened to allow it to move. The body is made from Carbon Steel, the ball is hard chrome plated. These bearings are ideal for use in areas which require a tight fitted ball. These bearings are ideal for use in areas where the joint is constantly in motion as the liner insures the ball mooves freely without any knocking or play being induced. These are commonly used in motorsport and on industrial equipment. These joints do not require lubrication.

BALL:  52100 Bearing Steel  ~  Heat Treated  ~  Hard Chrome Plated  ~  Precision Ground

LINER: Teflon Liner between Ball and Body

BODY:  Carbon Steel ~  Heat Treated  ~  Protective Coated for Corrosion Resistance

EXCLUSIVE FEATURES:  Cost Effective  ~  Teflon Lined  ~  Maintenance Free  ~  Free UK 1st Class Postage

DIMENSIONS: Bore Hole: 17mm ~ Outer Diameter: 35mm  ~  Width of the Ball: 20mm  ~  Width of the Casing: 12mm  ~  Misalignment Angle:  degrees

Radial Static Load :  KN​

GEG-C Range - Ideal for Motorsport, Industrial or Marine Applications.

To complement these Bearings, we have a range of other products available in our online store. We supply hardware for most sizes of bearing.
