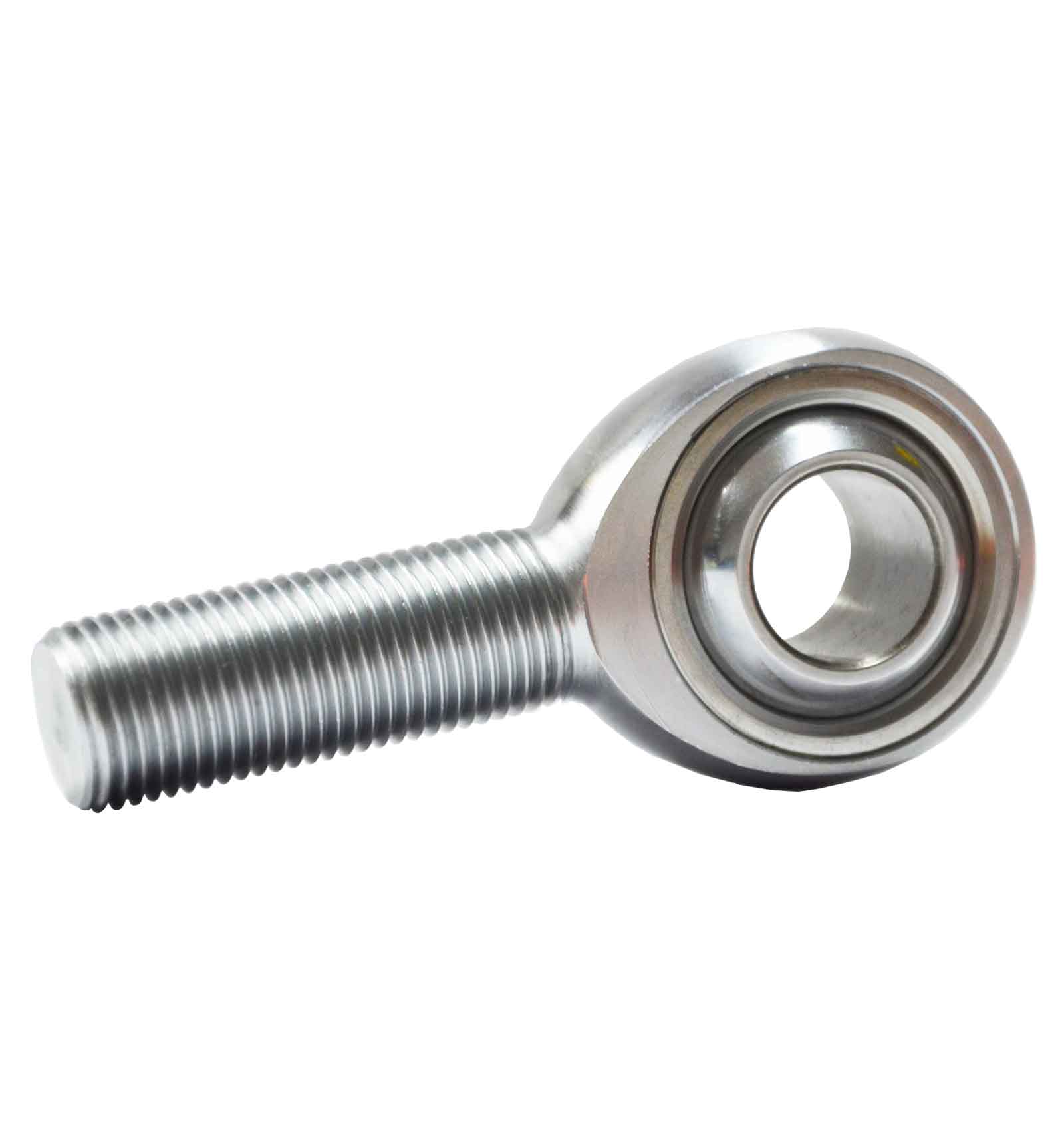

McGill AG- Aircraft Grade Alloy Steel Teflon®  (PTFE) Lined Series range features a 3-Piece construction.

BALL:  52100 Bearing Steel  ~  Heat Treated  ~  Hard Chrome Plated  ~  Precision Ground

RACE:  Low Carbon Steel  ~  Corrosion & Wear Resistant ~  PTFE Lined

BODY:  Chrome Molybdenum  ~  Heat treated  ~  Corrosion Resistant

EXCLUSIVE FEATURES:  Thicker Body for Increased Tensile Strength  ~  High Radial Load Capability

Bore: 16mm

Width of Ball: 21mm

Width of Housing: 14.25mm

End of thread to Eye of Bore: 64mm

Diameter of Head: 38mm

Ball Dia Ref: 28.58mm

Thread Length: 40mm

Misalign Angle: 23 deg

Ult. Radial Static Load: 76,291 Newtons

Approx. Bearing weight: 173g

AG Range - Ideal for Motorsport and Marine Applications.
