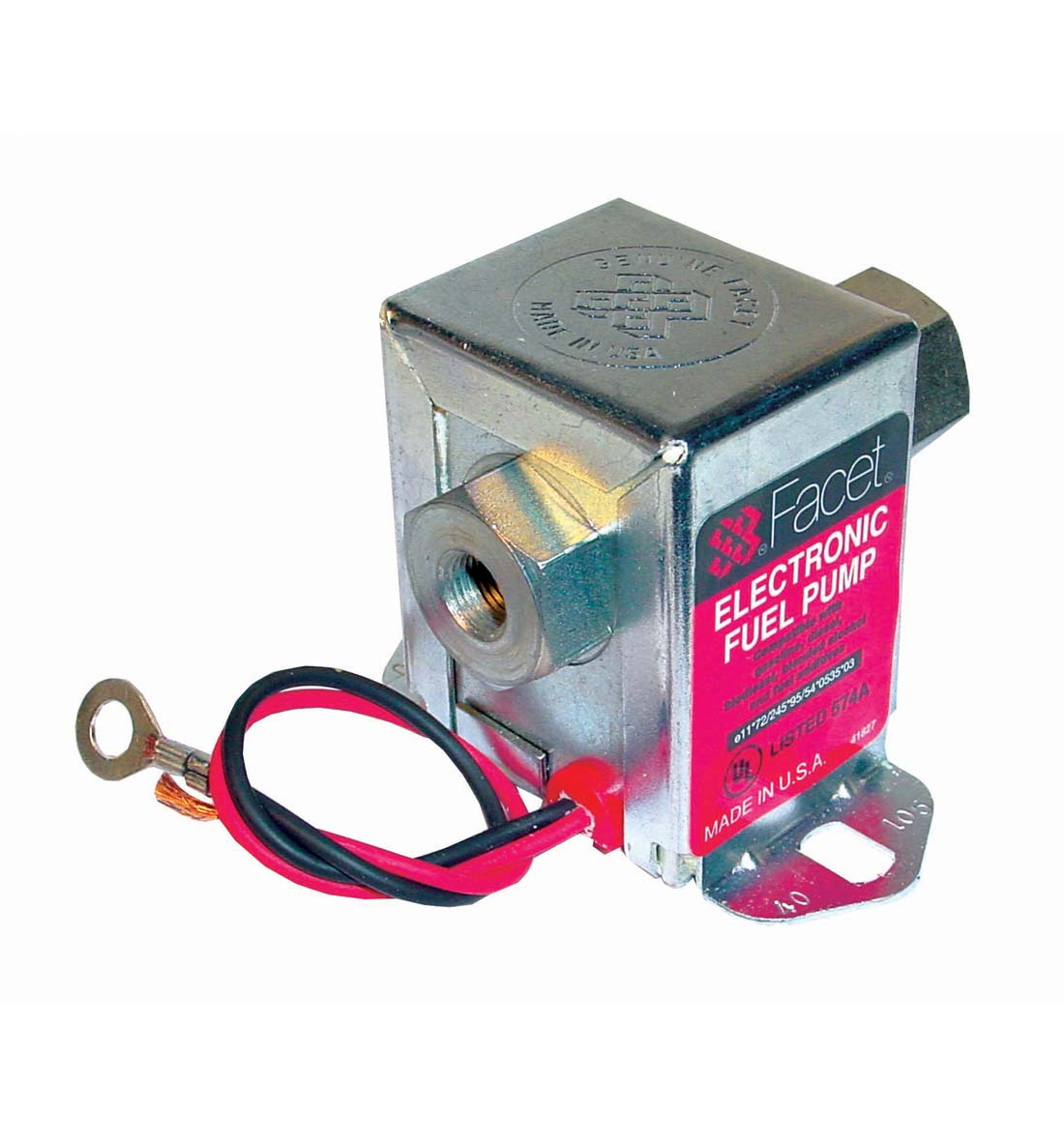

Solid State Fuel Pump - Facet 40106K

McGill Motorsport now offer as part of their Fuel Pump collection this Facet 40106K Solid State Fuel Pump. This solid-state technology electronic fuel pump provides an output of 145.4 litres/hour and 0.27 - 0.48 bar. This Facet Cube Fuel Pump is self-priming with a dry lift capacity of 120 inches.

There are two universal models of Facet Pumps which provide complete coverage for all low and high-pressure carburettor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

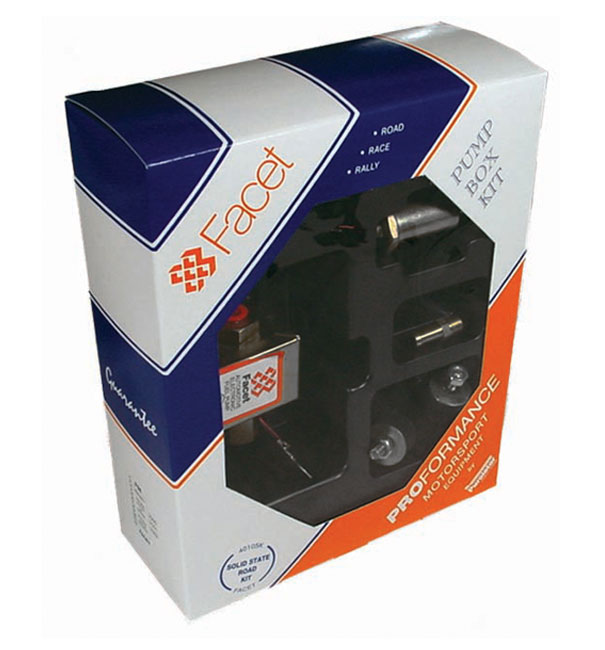

Box Kit Contents
1x Pump (40106)
1x 8mm Straight Union (FPA903A)
1x 8mm Filter Union (FPA906)
1x Facet Mounting Kit (FPA905)

Specifications
Ideal for: Fast Road - Motorsport, Marine, Industrial
Facet Code: 40106-K
Voltage: 12v
Earth: Neg
Pressure: 4.0 - 7.0 PSI (0.27 - 0.48 bar)
Flow: 32 gallons/hour (145.4 litres/hour)
Dry Prime Height: 0.3 meters
Thread Size: 1/8 NPTF
Average Run Time or MTBF: 6000 hrs
Positive Shut-Off Valve: No
Check Valve: No
Operating Temperature: -31º F to +55° F
Fuel Type: Petrol up to E10, Petrol + E85, Diesel

Fuel Union Installation: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal.

Certified & Complies With EEC 95/54 Requirements.

Please Note: The product in not suitable for use in the aircraft industry.
