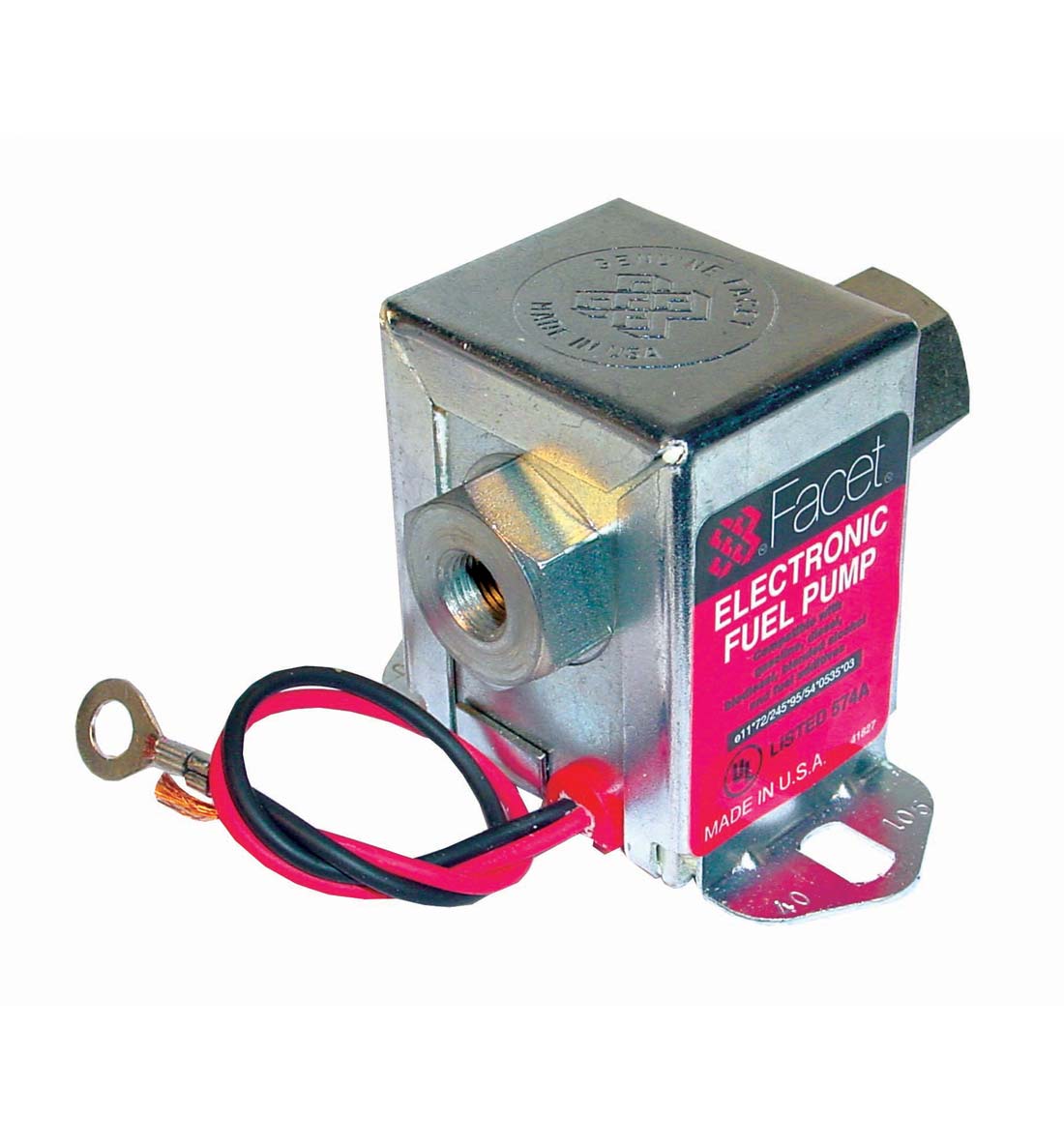

Solid State Fuel Pump - Facet 40105

McGill Motorsport now offer as part of their Fuel Pump collection this Facet 40105 Solid State Fuel Pump. This solid-state technology electronic fuel pump provides an output of 136.3 litres/hour and 0.20 - 0.31 bar. This Facet Cube Fuel Pump is self-priming with a dry lift capacity of 120 inches.

There are two universal models of Facet Pumps which provide complete coverage for all low and high-pressure carburettor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Specifications
Ideal for: Road
Facet Code: 40105 - SS501
Voltage: 12v
Earth: Neg
Pressure: 3.0 - 4.5 PSI (0.20 - 0.31 bar)
Flow: 30 gallons/hour (136.3 litres/hour)
Dry Prime Height: 0.3 meters
Thread Size: 1/8 NPTF
Average Run Time or MTBF: 6000 hrs
Positive Shut-Off Valve: No
Check Valve: No
Operating Temperature: -40º F to +180° F

Fuel Union Installation: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal.

Certified & Complies With EEC 95/54 Requirements.

Please Note: The product in not suitable for use in the aircraft industry.
