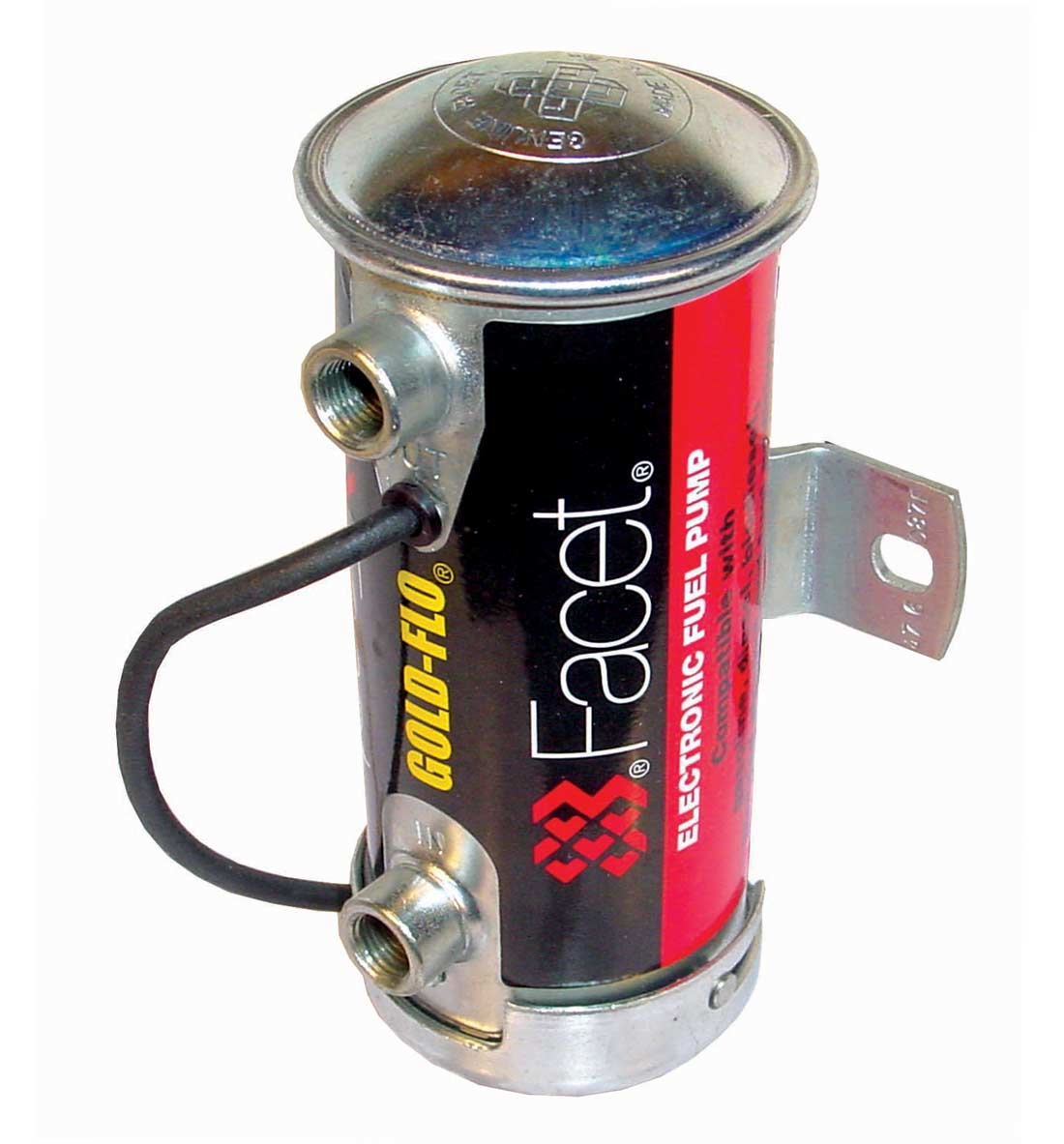

Silver Top Cylindrical Fuel Pump RTW506 - Facet 480530-K

McGill Motorsport now offer as part of their Fuel Pump collection this Facet 480532 Silver Top Cylindrical Fuel Pump. This electronic fuel pump provides an output of 159.1 litres/hour and 0.41 - 0.48 bar. An industry standard for over 60 years, this lightweight compact pump can be found in almost every conceivable application and is self-priming with a dry lift capacity of 0.6 meters.

This range of pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery.

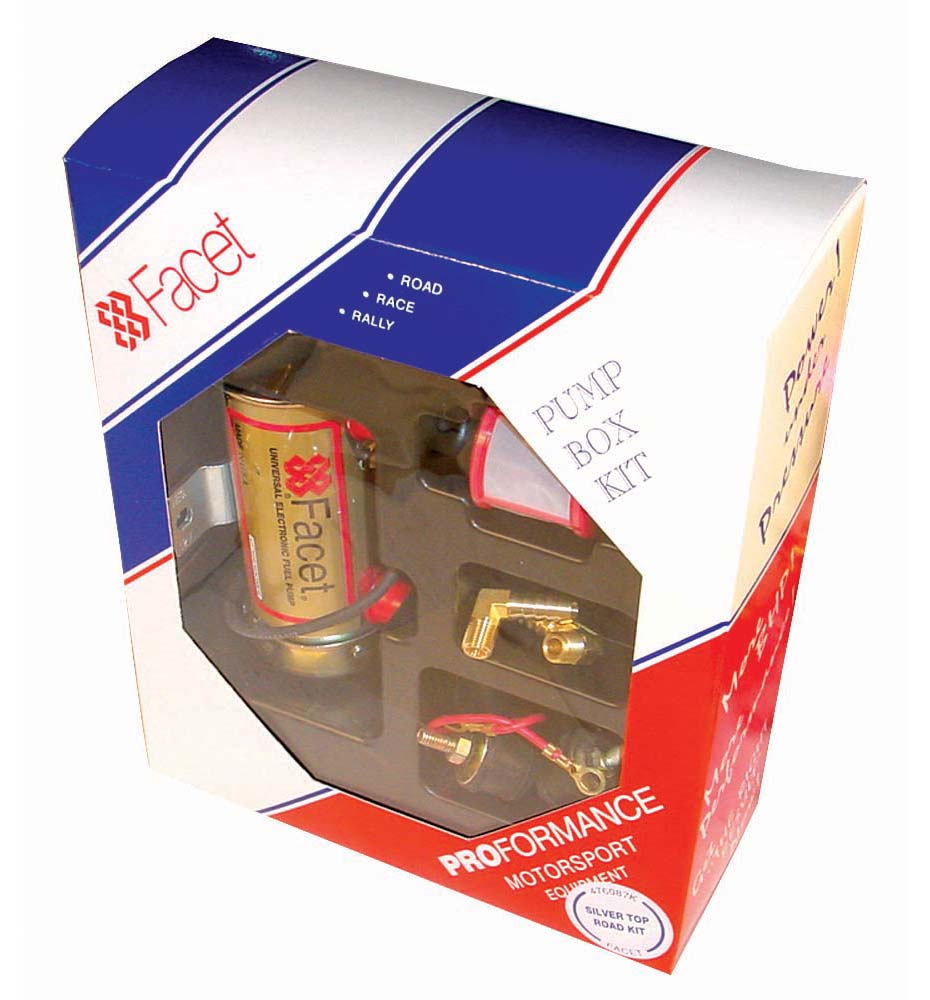

Contents
1x Pump (476459)
2x 8mm 90 Degree Union (FPA9011)
1x Facet Mounting Kit (FPA905)
1x Spare Filter (FPA908R)

Specifications
Ideal for: Fast Road - Motorsport, Marine
Facet Code: 480530-K - STC505
Voltage: 12v
Earth: Neg
Pressure: 6.0 - 7.0 PSI (0.41 - 0.48 bar)
Flow: 35 gallons/hour (159.1 litres/hour)
Dry Prime Height: 0.6 meters
Thread Size: 1/8 NPTF
Average Run Time or MTBF: 6000 hrs
Operating Temperature: -40º F to +180° F
Fuel Type: Petrol up to E10, Petrol + E85, Diesel

Fuel Union Installation: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal.

Certified & Complies With EEC 95/54 Requirements.

Please Note: Designed and manufactured to automotive specification and not recommended for the maintenance of flight.
