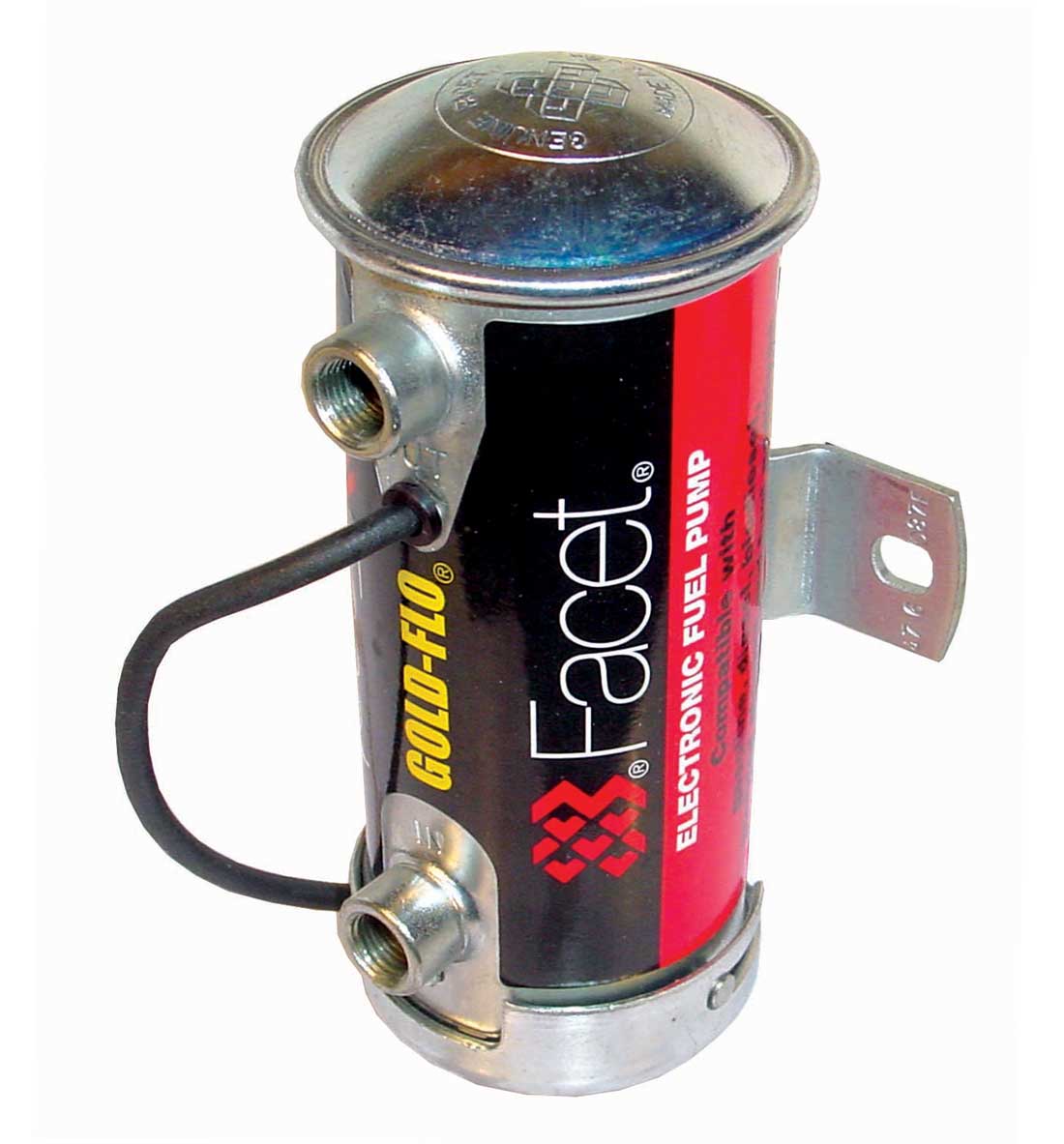

Red Top Cylindrical Fuel Pump RTW506 - Facet 480532

McGill Motorsport now offer as part of their Fuel Pump collection this Facet 480532 Red Top Cylindrical Fuel Pump. This electronic fuel pump provides an output of 204.5 litres/hour and 0.41 - 0.55 bar. This Facet Red Top Fuel Pump is self-priming with a dry lift capacity of 0.6 meters.

This range of pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery.

Specifications
Ideal for: Competition
Facet Code: 480532E - RTW506
Voltage: 12v
Earth: Neg
Pressure: 6.0 - 8.0 PSI (0.41 - 0.55 bar)
Flow: 45 gallons/hour (204.5 litres/hour)
Dry Prime Height: 0.6 meters
Thread Size: 1/4 NPT
Average Run Time or MTBF: 6000 hrs
Positive Shut-Off Valve: No
Check Valve: No
Operating Temperature: -40º F to +180° F
Fuel Type: Petrol up to E10, Petrol + E85, Diesel

Fuel Union Installation: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal.

Certified & Complies With EEC 95/54 Requirements.

Please Note: Designed and manufactured to automotive specification and not recommended for the maintenance of flight.
