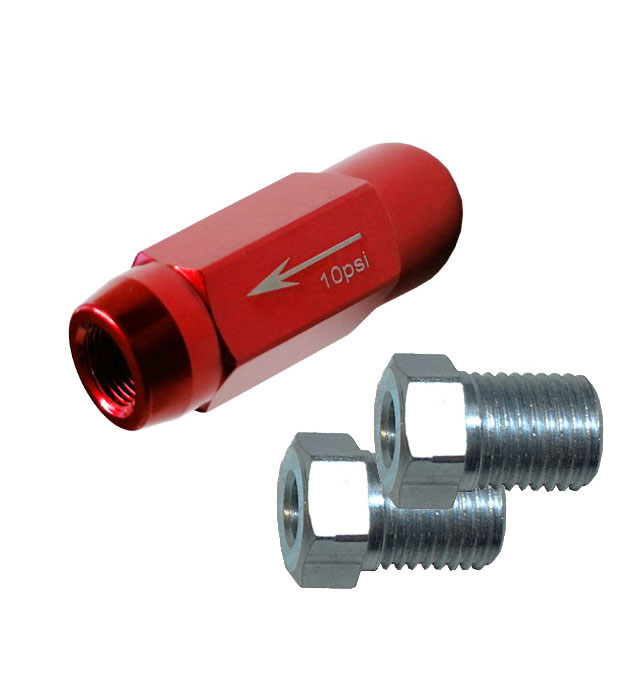

Residual Pressure Valve for Drum Brake Systems - 10 PSI + Fittings for 3/16" Copper Pipe

These residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The 10 PSI valve is used in drum brake applications where the valve is used to compensate for return spring tension and to maintain wheel cylinder sealing inside the drums.

DESIGN

• Made from billet aluminium
• Annodised silver
• M10 x 1mm thread - industry standard thread type for brake systems
• Supplied with 2x M10x1mm Brake Nuts for 3/16" Copper Pipe
• Tapered end is the outlet
• Factory set pressure of 10PSI
• Single flare

USE

• Install the valve as close as possible in line to the master cylinder to ensure as much of the line as possible is pressurised
• Enhances brake performance as it holds a constant pressure in the brake line, ready for the system to be activated
• Greatly aids turning under braking

EXCLUSIVE FEATURES

• 1 year guarantee
• Excellent price and FREE UK 1st class postage

WARNING

IT IS THE RESPONSIBILITY OF THE PERSON INSTALLING AND BRAKE COMPONENT OR KIT TO DETERMINE THE SUITABILITY OF THAT COMPONENT OR KIT FOR THAT PARTICULAR APPLICATION. IF YOU ARE NOT SURE HOW TO SAFELY USE THIS BRAKE COMPONENT OR KIT, YOU SHOULD NOT INSTALL OR USE IT. DO NOT ASSUME ANYTHING. IMPROPERLY INSTALLED OR MAINTAINED BRAKES ARE DANGEROUS. IF YOU ARE UNSURE, SEEK EXPERT PROFESSIONAL QUALIFIED HELP OR RETURN THIS ITEM TO US. YOU, OR THE PERSON WHO INSTALLS THIS PRODUCT, MUST KNOW HOW TO INSTALL OR PROPERLY USE THIS PRODUCT. IT IS NOT POSSIBLE TO OFFER TECHNICAL ASSISTANCE OVER THE PHONE TO UNDERSTAND OR FORESEE ALL THE ISSUES THAT MIGHT ARISE IN YOUR SPECIFIC INSTALLATION. RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR DAMAGE, WEAR OR FATIGUE.

Flutra Systems Residual Pressure Valve - Ideal for Motorsport and Road Going Applications.

To complement these valves, we have a range of other products available in our online store.
