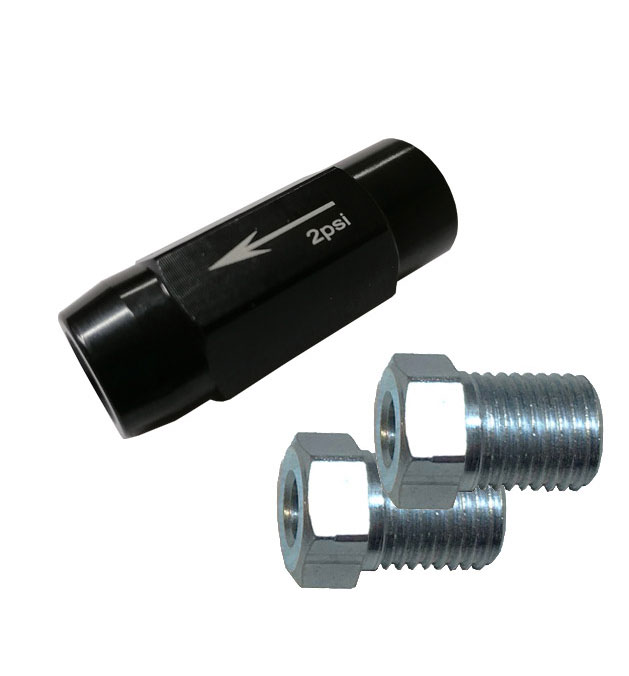

Residual Pressure Valve for Disc Brake Systems - 2PSI + Fittings for 3/16" Copper Pipe

These residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The 2 PSI valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration.

DESIGN

• Made from billet aluminium
• Annodised black
• M10 x 1mm thread - industry standard thread type for brake systems
• Supplied with 2x M10x1mm Brake Nut to fit to 3/16" Copper Pipe
• Arrow on the valve shows direction in which the valve should be placed
• Factory set pressure of 2PSI
• Single flare

USE

• Install the valve as close as possible in line to the master cylinder to ensure as much of the line as possible is pressurised
• Enhances brake performance as it holds a constant pressure in the brake line to ensure the caliper is nearer to the disc, ready for the system to be activated
• Greatly aids turning under braking
• Especially beneficial where the brake master cylinder is located below the horizontal plane of the calipers

EXCLUSIVE FEATURES

• 1 year guarantee
• Excellent price and FREE UK 1st class postage

WARNING

IT IS THE RESPONSIBILITY OF THE PERSON INSTALLING AND BRAKE COMPONENT OR KIT TO DETERMINE THE SUITABILITY OF THAT COMPONENT OR KIT FOR THAT PARTICULAR APPLICATION. IF YOU ARE NOT SURE HOW TO SAFELY USE THIS BRAKE COMPONENT OR KIT, YOU SHOULD NOT INSTALL OR USE IT. DO NOT ASSUME ANYTHING. IMPROPERLY INSTALLED OR MAINTAINED BRAKES ARE DANGEROUS. IF YOU ARE UNSURE, SEEK EXPERT PROFESSIONAL QUALIFIED HELP OR RETURN THIS ITEM TO US. YOU, OR THE PERSON WHO INSTALLS THIS PRODUCT, MUST KNOW HOW TO INSTALL OR PROPERLY USE THIS PRODUCT. IT IS NOT POSSIBLE TO OFFER TECHNICAL ASSISTANCE OVER THE PHONE TO UNDERSTAND OR FORESEE ALL THE ISSUES THAT MIGHT ARISE IN YOUR SPECIFIC INSTALLATION. RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR DAMAGE, WEAR OR FATIGUE.

Flutra Systems Residual Pressure Valve - Ideal for Motorsport and Road Going Applications.

To complement these valves, we have a range of other products available in our online store.
