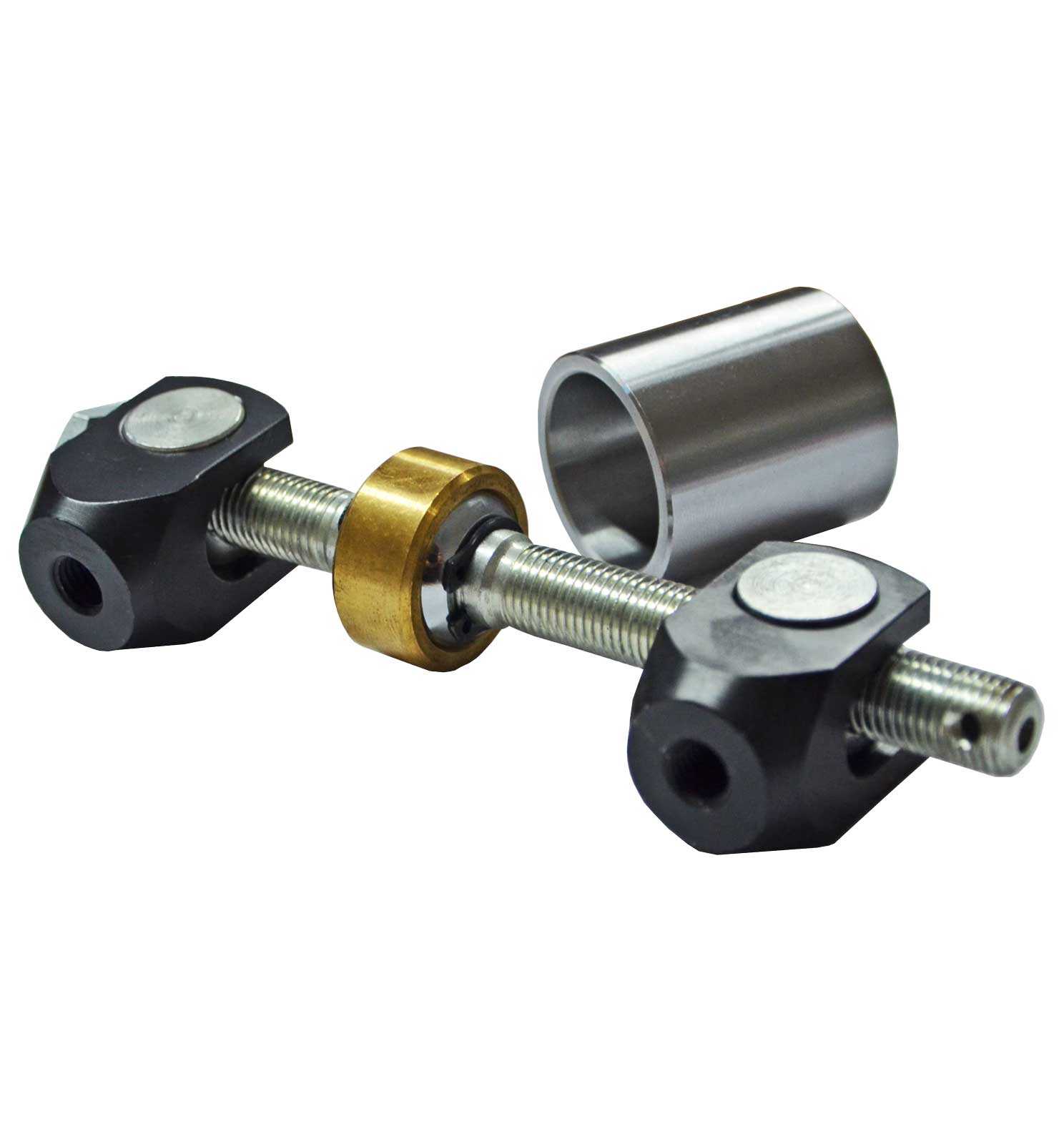

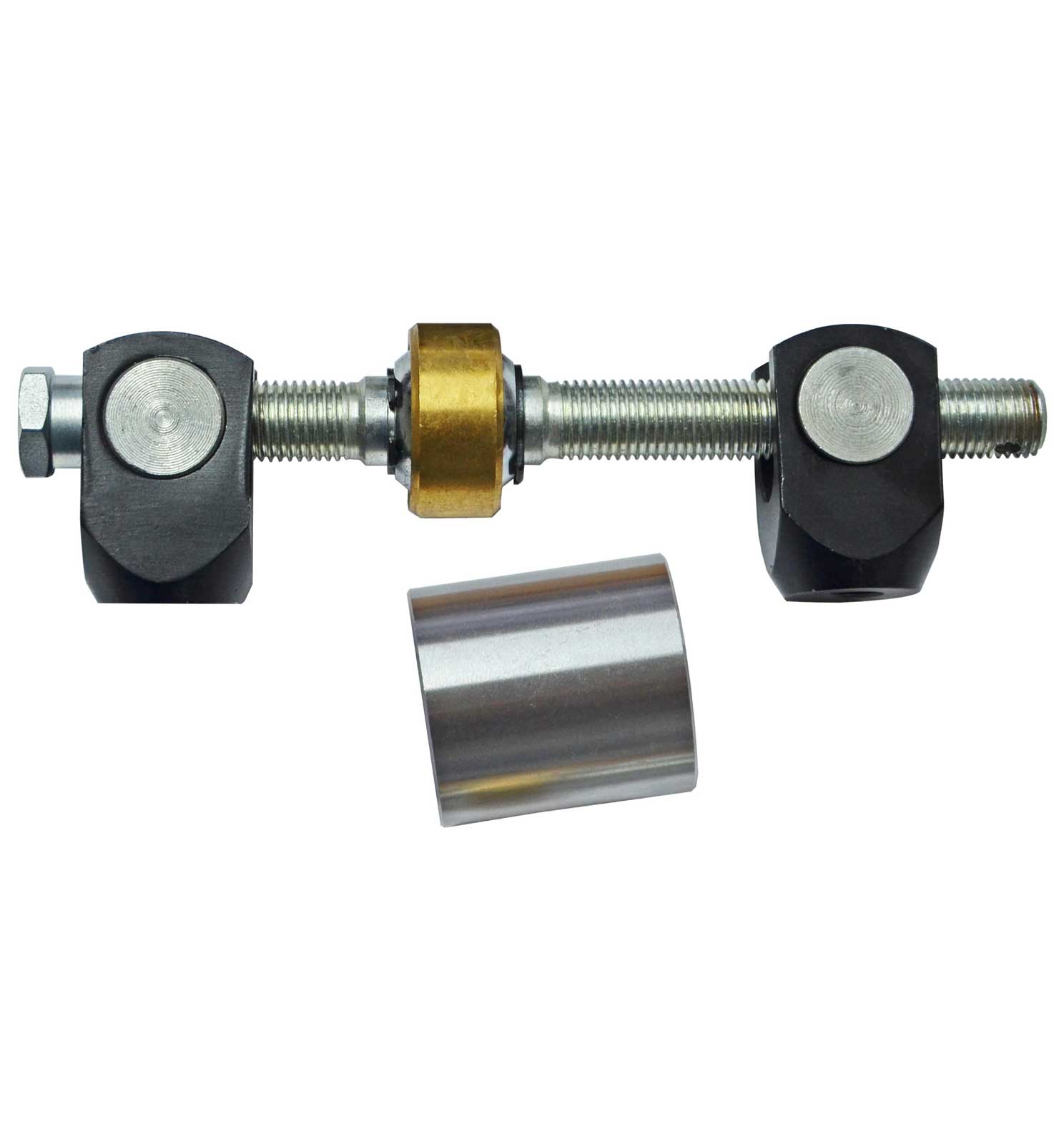

Balance Bar Assembly for Brake Bias

High quality product, ideal for motorsport use.

The remote brake bias adjustment bar is used in conjunction with the brake bias cable assembly and adjustment knob to allow the driver to take control of the front to rear brake bias. These brake bias adjustment systems are ideal for giving the driver control of the brake bias whilst driving. This becomes crucial with changing track conditions.

DESIGN

• Universal product - the bar is adjustable in length to be compatible with most race brake systems
• Professional design and quality construction
• Aluminium yoke clevises have 5/16" internal thread for connection to brake pots
• Central spherical bearing is a high quality Teflon lined bearing giving durable performance and precise motion
• Supplied complete with a securing nut & bearing sleeve for pedal box/mounting
• Bearing OD 1" (shell approx 4mm thick) ID 1/2"(approx 12mm)
• Sleeve dims: 31.8mm OD, 26mm ID

USE

• Gives the driver control of the bias adjustment which can be altered during a race
• Changing track conditions or weather conditions may require an adjustment in brake bias
• Adjustment is initiated via the 7/16" UNF threaded rod controlled by the cable adjuster which contains two black anodised aluminium yoke clevises with 5/16" UNF internal thread - fits most brake master cylinder push-rods
• Brake bias adjustment range is 0-100%
• Suitable for motorsport use
• Enhances control under braking
• Greatly aids turning under braking
• This fits inside all standard pedal box brake bias systems.

EXCLUSIVE FEATURES

• 1-year guarantee
• Excellent price and FREE UK 1st class postage

WARNING

IT IS THE RESPONSIBILITY OF THE PERSON INSTALLING AND BRAKE COMPONENT OR KIT TO DETERMINE THE SUITABILITY OF THAT COMPONENT OR KIT FOR THAT PARTICULAR APPLICATION. IF YOU ARE NOT SURE HOW TO SAFELY USE THIS BRAKE COMPONENT OR KIT, YOU SHOULD NOT INSTALL OR USE IT. DO NOT ASSUME ANYTHING. IMPROPERLY INSTALLED OR MAINTAINED BRAKES ARE DANGEROUS. IF YOU ARE UNSURE, SEEK EXPERT PROFESSIONAL QUALIFIED HELP OR RETURN THIS ITEM TO US. YOU, OR THE PERSON WHO INSTALLS THIS PRODUCT, MUST KNOW HOW TO INSTALL OR PROPERLY USE THIS PRODUCT. IT IS NOT POSSIBLE TO OFFER TECHNICAL ASSISTANCE OVER THE PHONE TO UNDERSTAND OR FORESEE ALL THE ISSUES THAT MIGHT ARISE IN YOUR SPECIFIC INSTALLATION. RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR DAMAGE, WEAR OR FATIGUE.

To complement these bias bars, we have a range of brake products available in our online store.
