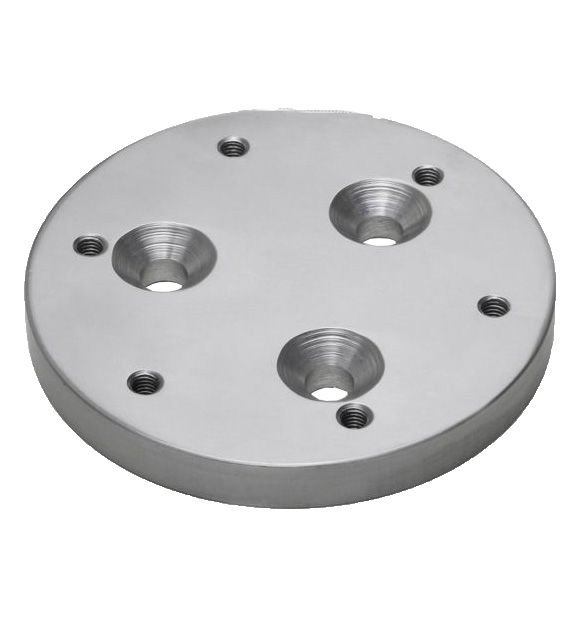

3 Hole to 6 Hole Adaptor Plate for use with Quick Release Hubs

McGill products are manufactured under strict quality control procedures and are made to our spec with the customer's needs in mind. We aim to offer the best quality products at the lowest prices.

USE

Coverts standard 3 hole (USA Standard - 3x 40mm PCD) fitment on quick release hubs to a 6 hole (European Standard 6x 70mm PCD) fitment.

Allows the use of MOMO / OMP / SPARCO style fitments to be fitted to our range of USA standard quick release hubs.

Quick release hubs act as a safety device as the wheel can be removed with the push of a button.

Quick release hubs also allow space for the driver to exit the car when the seat cannot be adjusted (in motorsport applications)

Ideal for motorsport use.

Can be used as an adaptor to bring the wheel closer to the driver (we sell these in 18mm and 10mm thicknesses).

DESIGN

6 x M5 threaded holes for attachment to wheel.

PCD (Pitch Circle Diameter): 70mm (6 hole).

3 x Countersunk areas with M8 (5/16") drilled diam for attachment to 3 hole quick release hubs.

Billet aluminium machined plate, made on a state of the art 4-axis lathe.

Countersunk holes for attachment

Thickness: 10mm

Weight: 280g

Made with high quality tools to ensure excellent reliability.

Outer diameter: 90mm

EXCLUSIVE FEATURES

Made to strict quality control.

Excellent price (with Free UK P&P).

To complement these pumps, we have a range of other products available in our online store. We supply quick release hubs, steering wheels etc.
