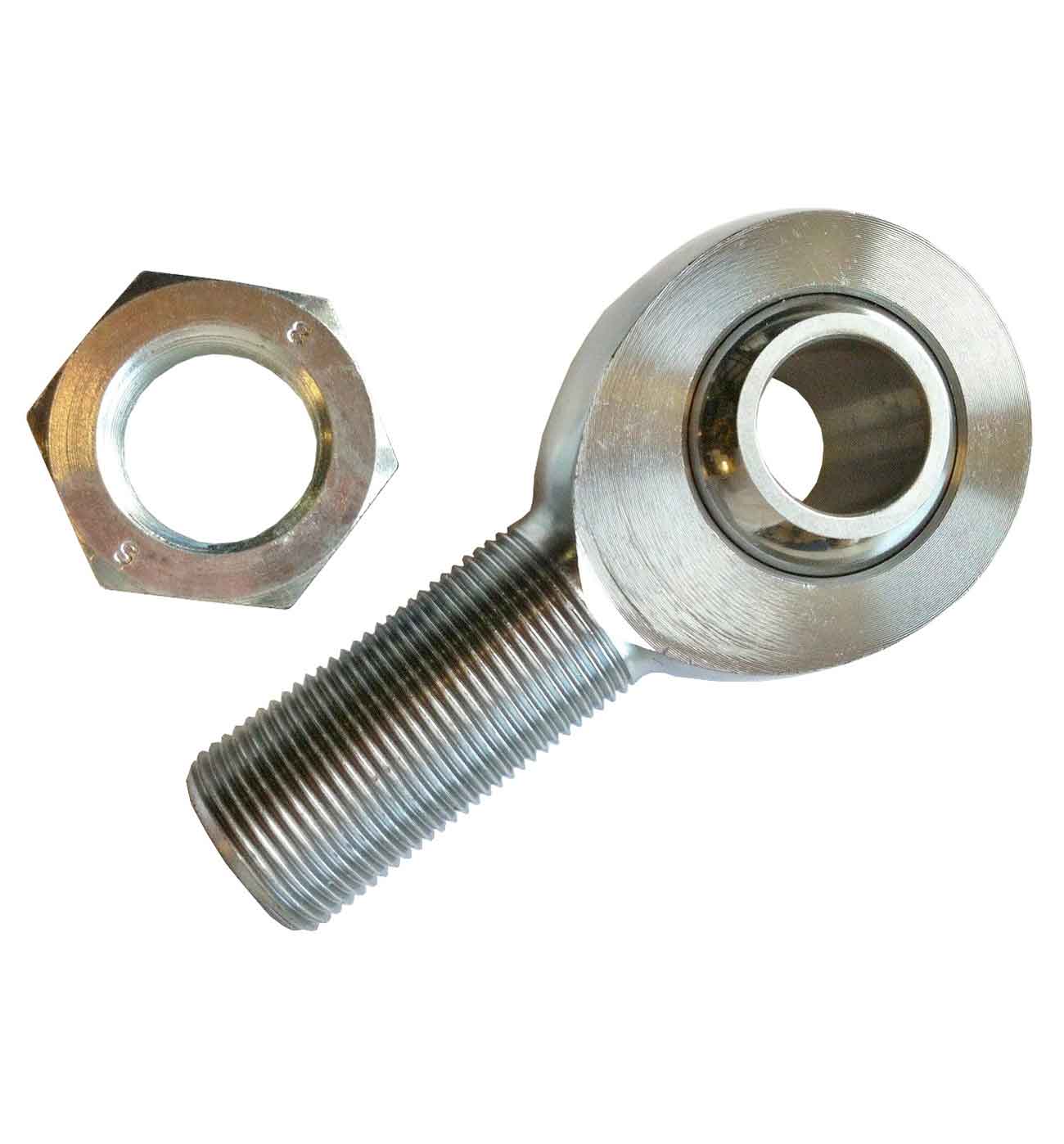

McGill XM - Racing Series Ultra High Performance Racing Series range features a loaded slot style of rod end that was introduced to the market in 1995. The body is machined with a significant groove going all the way around the interior of the body. The ball is then inserted into the machined slot and a Teflon®/Kevlar® material is injected. Serving as a liner to keep dirt and debris out, the Kevlar also lubricates the ball. In addition to providing added strength, the injection moulded race also won’t “pound out” like traditional PTFE (Teflon®) liners, increasing the longevity of your rod ends. The body is heat treated and is made from Chrome Molybdenum for excellent strength and corrosion resistance.  This is simply the best rod end design for most motorsport applications.

BALL:  52100 Bearing Steel  ~  Heat Treated  ~  Hard Chrome Plated  ~  Precision Ground

RACE:  Injection Moulded Kevlar Reinforced with PTFE  ~  Self-Lubricating  ~  Self-Sealing

BODY:  Chrome Molybdenum  ~  Heat treated  ~  Corrosion Resistant

EXCLUSIVE FEATURES:  Thicker Body for Increased Tensile Strength  ~  High Radial Load Capability  ~  Metal to Metal Support for Heavy Shock Loads

Bore Size: 3/4"

Thread: 7/8" RH UNF

Misalignment Angle: 12 degrees

Radial Static Load: 43486 lbs

XM Range - Ideal for Motorsport and Marine Applications.
