Brand:  NMB Minebea
Measurement Unit:  Imperial
Contact Material:  Stainless Steel/PTFE
Bore:  25.40mm
Outside Dia (D):  1.75"
Ball Width:  1"
Housing Width:  0.797"

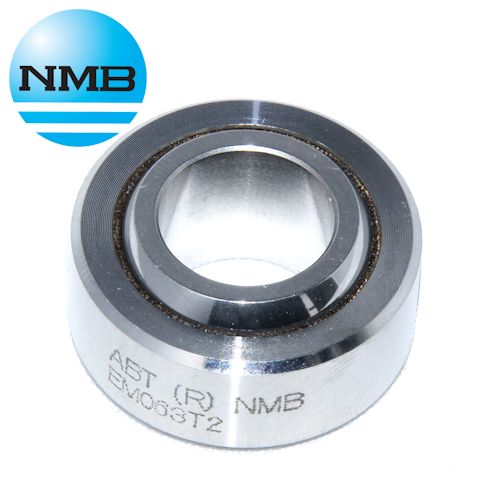

ABT16 NMB 1" Spherical Bearing Stainless Steel/PTFE - Chamfer Type. Also known as: ABT16(R)

High Quality NMB Spherical Bearings manufactured from heat treated stainless steel with a Teflon fabric liner suitable for Motorsport Applications.

• Race: Heat Treated Stainless Steel, CRES 410
• Ball: Heat Treated Stainless Steel, CRES 440C
• Liner: Teflon/Fabric bonded to race I.D.

Important Warning Notice: Please be aware that as the manufacturer is unable to determine which application a part will be used in, it's the end users responsibility to determine if the part purchased is suitable for the intended use. Where safety is a factor incorrect application or installation may result in damaged property or injury or death.

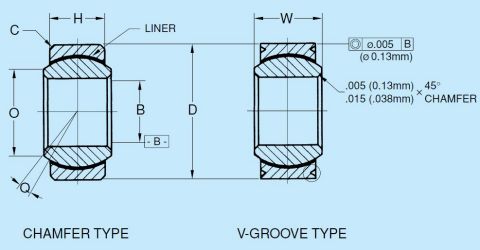

ABT16 Chamfer Type dimension chart - all dimensions in inches unless indicated.
